Usage and application:
Spiral chute is a gravity separation equipment of separation different weight mineral by inertial centrifugal force pulp produced in helix turning motion, it widely used in enrichment of particle size 0.3-0.02mm fine minerals like iron, tin, chromite, ilmenite, tungsten, zinc, tantalum-niobium, gold, coal , monazite, rutile, zircon and other low-grade ores, and non-metallic minerals which have a big enough specific gravity difference.
The product is made of the fiberglass lined with wear-resistant resin and cover emery; the advantages are light, moisture proof,anti-rust, wear proof, anti corrosion and no noise, properly suitable for the different feeding particle sizes and grades. It is the domestic advanced level, the new highly effective equipment.
Working principle:

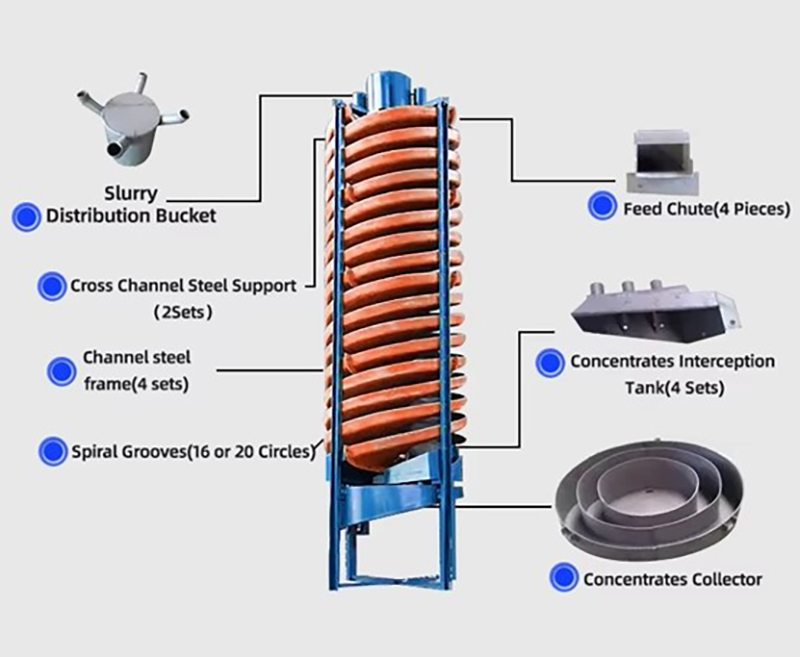

Gravity Spiral Chute concentrator separator is working under the the force of water flow, gravity, inertial centrifuge and friction. Slurry is pumped to the top of the spiral , and it enters a feed distributor that evenly distributes the feed to each Spiral Chute. The design and shape of the spiral make it work, when combined with gravitational acceleration. As the slurry travels the spiraling path down the spiral, mineral grains settle and start sorting according to size, density and to a lesser extend shape. Low density particles are carried with the bulk of the water towards the outside of the spiral , while particles with the greatest density migrate towards the inside of the spiral.
Features:
Our spiral chute is made of the fiberglass lined with wear-resistant resin and emery cover; the advantages are light, moisture proof, anti-rust, wear proof, anti corrosion, no noise and non power required.
