Gold centrifugal Concentrator Usage and application :

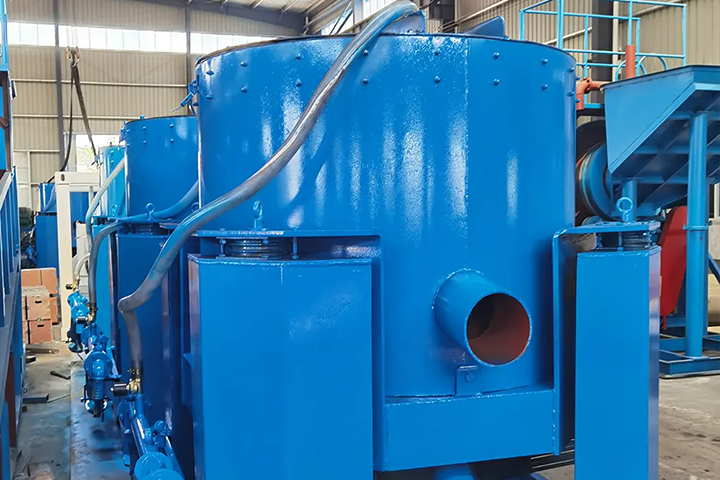

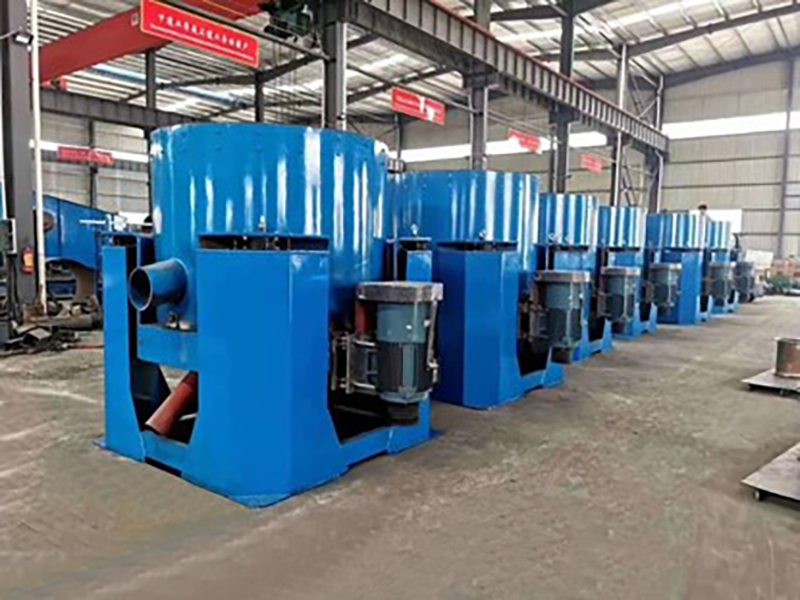

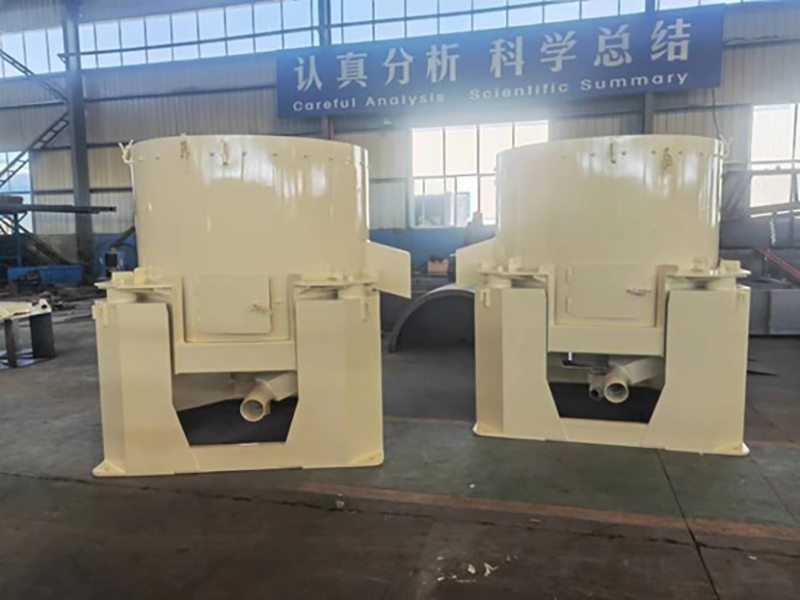

Gold centrifugal Concentrator is a new type of gravity concentration equipment for gold separating and other high density minerals. The centrifugal machine has many competitive advantages compared with other concentration machines which create high returns for the investors.
working principle:

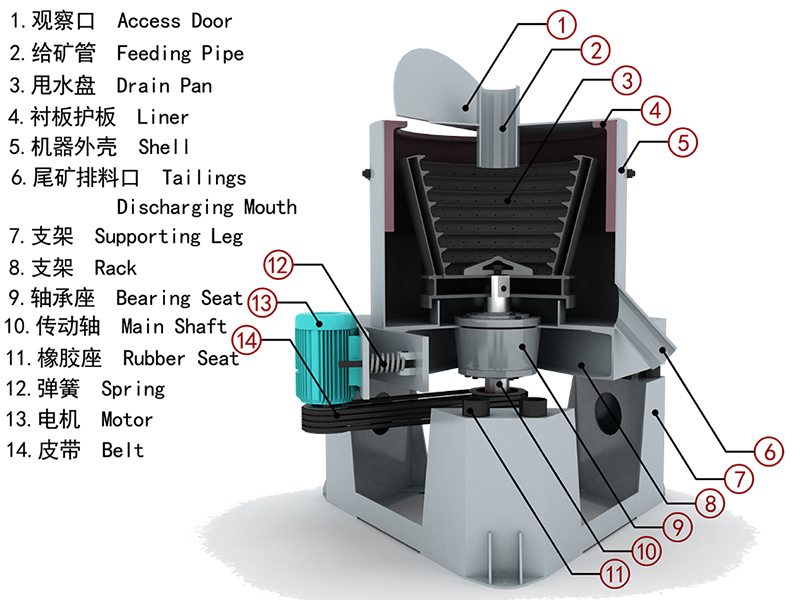

The main shaft is a hollow shaft, the pressurize backwash water come from the shaft, then goes into the separation unit, the water spray from holes to the gratings. During the process, the pressure of the water shall be 0.06-0.15MPa. The slurry which is mixed with water and ore and sand will be injected to the mainframe. With the heavy centrifugal force, the slurry will be move upward along the cone body, the light particles will be extracted from the upper part of cone, then discharge through the tailing outlet.The heavy particles will be stay in the gratings of the inner layer.
Features:
1.High recovery rate: Through our test, the recovery rate for placer gold can be 98% or more, for rock gold, the recovery rate could reach 97% when the feeding size is below 7mm.
2.Easy to install: Only a small leveled place required. It's a full line machine, before starting it, we only need to connect the water pump and power.
3.Easy to adjust: There are only 2 factors that will affect the recovery result, they are water pressure and feeding size. By giving proper water pressure and feeding size, you could get the best recovery effect.
4.No pollution: This machine only consumes water and electric power, and exhaust tailings and water. Low noise, no chemical agent involved.
5.Easy to operate: After finishing the water pressure and feeding size adjust, clients only need to recover the concentrates every 2-4 hours. (Depending on the grade of the mine).
