Usage and application:

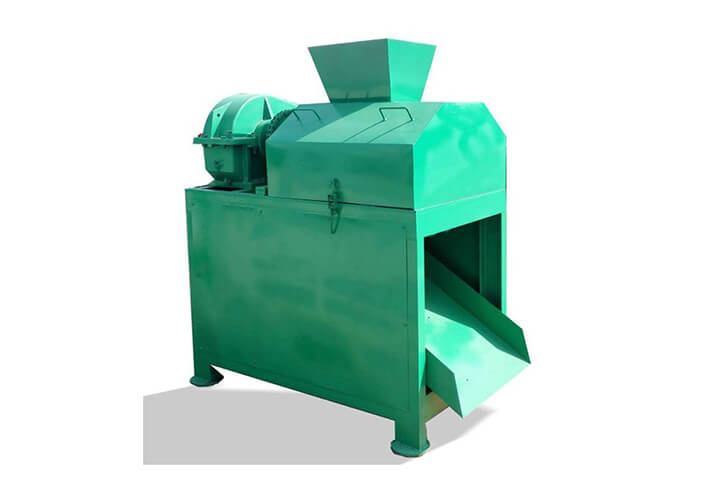

The roller extrusion granulator is the key equipment of compound fertilizer granulation and has the characteristics of advanced technology, reasonable design, compact structure, novelty and utility and low energy consumption.
Working principle:

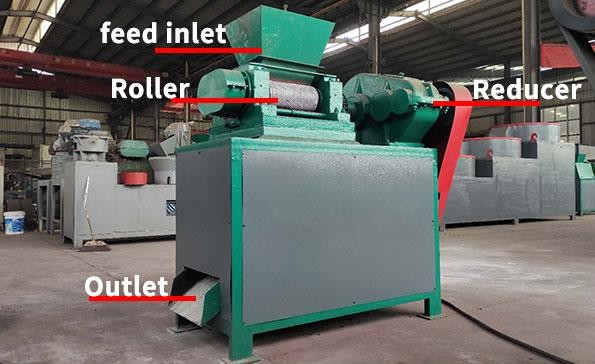

This series of roller granulation belongs to extrusion sliding model, whose working principle is: the belt and belt pulley are driven by an electric motor, and transmitted to the drive shaft by reducer, and work in the same direction through the open gear and the passive shaft.The material is added from the feed hopper, extruded by the roller, demoded and pelleted, and passed through a pair of chains to the crushing screen studio, where the finished product pellets (balls) are screened and separated, and then the material is returned and mixed with new materials for granulation.With the continuous rotation of the motor and the continuous entry of materials, mass production can be realized.
Features:
1. Once forming, no dying process, normal temperature granulating, beautiful and evenly appearance granules.
2.Low power consumption, low noise.
3.Structure simple.
4.Easy operation and maintenance.
5.Long service life.
6.Quick profit, good economic returns
