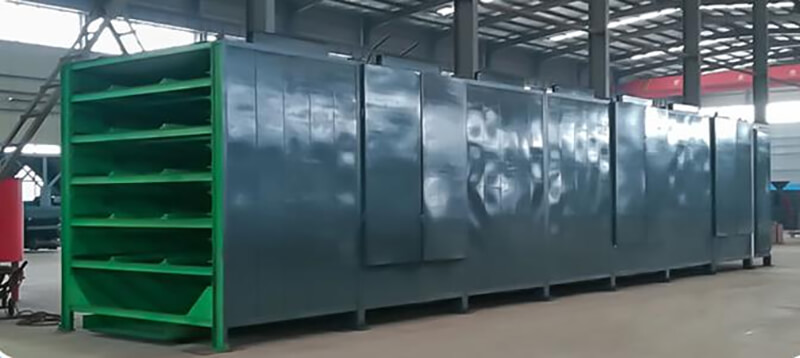

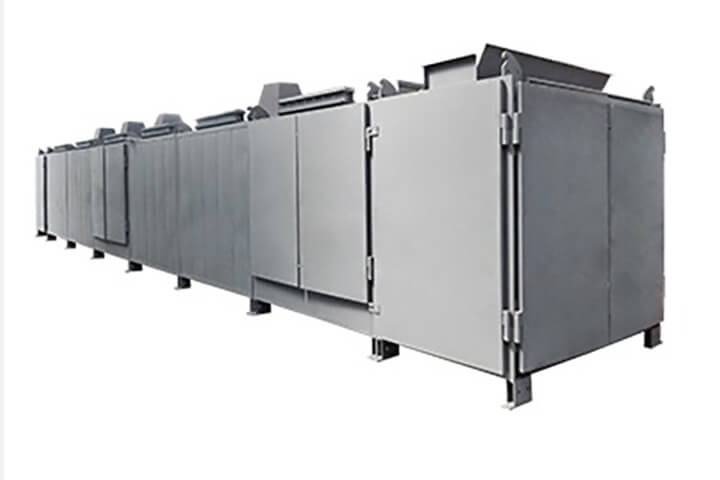

Mesh belt dryer

Mesh belt dryer is a kind of batch, continuous production drying equipment, mainly used for drying different kinds of briquettes such as coal briquettes, mineral briquettes, iron briquettes etc. It is one of the most important equipment in the coal briquette production line.

Product information

Usage and application:


Working principle:

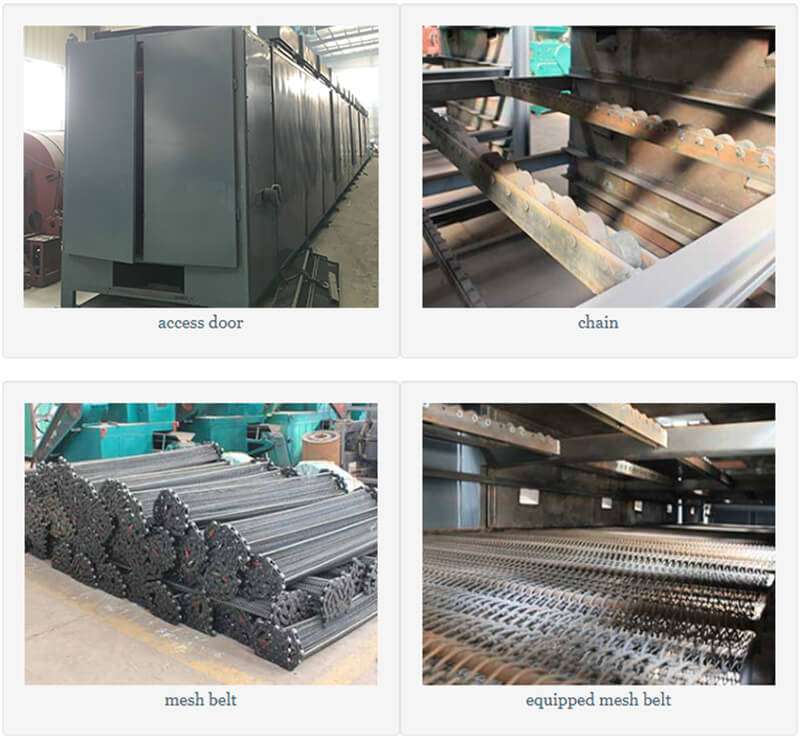

The briquette mesh belt dryer also named chain plate dryer, it is a kind of drying machine use steel net belt as transport carrier and dry material continuously. Because transmission belt is mesh, so this dryer can dry regular or irregular shape various briquette (for examples: coal, briquette of all kinds of mineral, food and vegetables). This briquette mesh belt dryer can be used with other supporting machine and also can be used alone. Especially it is the ideal dry equipment of various kinds of materials briquette production line.


Features :

1) High efficency, high-yield, high evaporation intensity.

2) Standardization of production and capacity could be increased according to the number of segments.

3) High drying efficiency, no pollution, wide application.

4) Definite safety.

Technical specifications

Model		DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10	DW-2-20
Quantity of unit		4	5	4	5	4	5	10
Width of belt(m)		1.2		1.6		2
Length of dry section(m)		8	10	8	10	8	10	20
Operation temperature(oC)		50-140
Steam pressure(MPa)		0.2-0.8
Steam consumption (kg/h)		120-300	150-375	150-400	180-500	180-500	225-600	450-1200
Drying time (h)		0.2-1.2	1.25-1.5	0.2-1.2	0.25-1.5	0.2-1.2	0.25-1.5	0.5-3
Drying capacity(kg water/h)		60-160	80-200	85-220	100-260	100-260	120-300	240-600
Total power (kw)		11.4	13.6	14.6	18.7	19.7	24.5	51
Overall size	L(m)	9.56	11.56	9.56	11.56	9.56	11.56	21.56
	W(m)	1.49	1.49	1.9	1.9	2.32	2.32	2.32
	H(m)	2.3	2.3	2.4	2.4	2.5	2.5	2.5
Weight (kg)		4500	5600	5300	6400	6200	7500	14000
