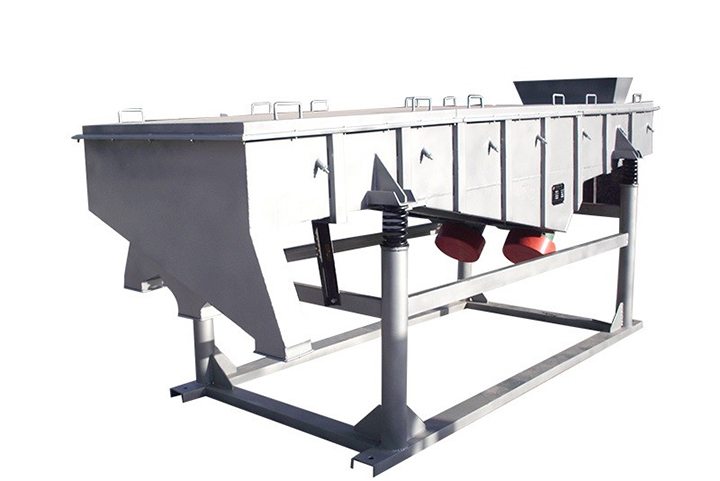

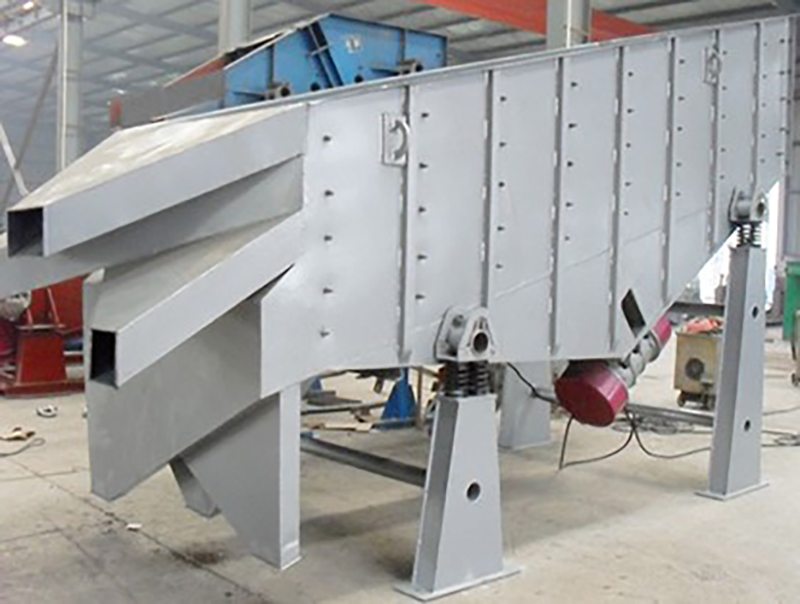

Linear vibrating screen

This series machines use excellent vibrant motor as power source, so that the materials can be thrown up on the sieve and forward to make a straight movement.

Product information

Usage and application:

This series machines use excellent vibrant motor as power source, so that the materials can be thrown up on the sieve and forward to make a straight movement. It can be equipped with single or multi-screen to achieve the goal of grading, impurity- removing, testing, washing , dehydration etc.


Working principle:

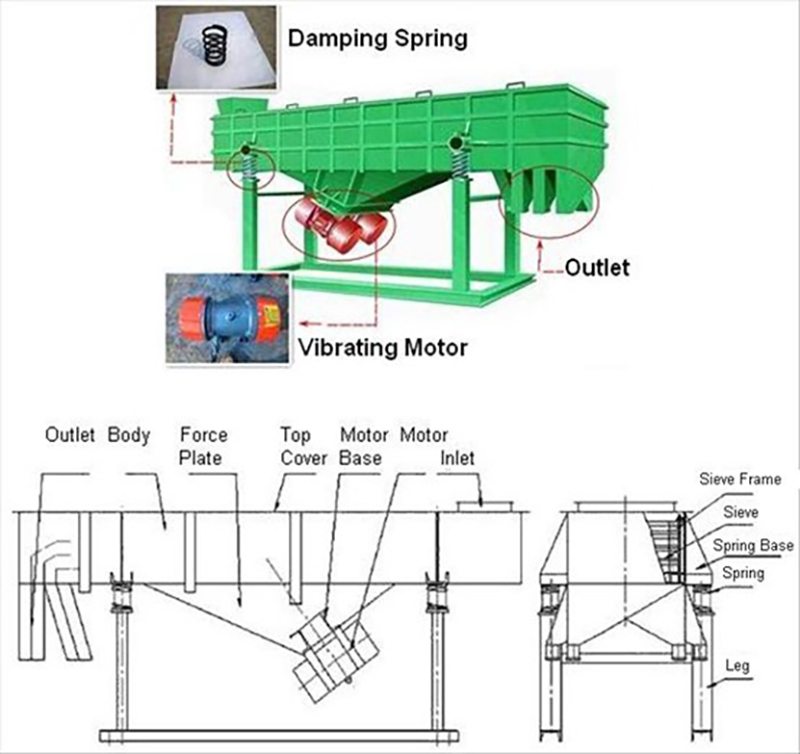

Linear vibrating screen mainly consists of the eccentric block vibrator, screen box, motor, and supportive device.Through the flexible coupling, the motor drives the eccentric block of the vibrator at high rotary speed, generating the centrifugal force, and then lead the screen box to do circular movement by the amplitude. After that, the materials in the slope screen surface will be cast continuously by the force generated from the screen box, then realize the purpose of classifying.


Features:

High screening efficiency, can be screened up to 200 mesh (0.074mm)

Simple and convenient for changing and cleansing mesh screen Low noise and power consumption, easy maintenance

Less blocking of mesh screen

Automatic discharge of impurities and coarse materials, continuous operation

Technical specifications

Model	Layer	Screen mesh(mesh)	Capacity(t/h)	Vibration time(rpm)	Power(kw)	Double Amplitude(mm)
DZSF520	1	2-200	0.05-5	960	2*0.25	6-7
2DZSF520	2	2-200	0.05-5	960	2*0.4	6-7
DZSF525	1	2-200	0.06-8	960	2*0.4	5-7
2DZSF525	2	2-200	0.06-8	960	2*0.4	4-6
DZSF1020	1	2-200	0.12-20	960	2*0.75	6-8
2DZSF1020	2	2-200	0.11-20	960	2*0.75	5-7
3DZSF1020	3	2-200	0.10-2	960	2*0.75	5-7
DZSF1025	1	2-200	0.1-15	960	2*0.75	5-7
2DZSF1025	2	2-200	0.08-15	960	2*0.75	5-7
DZSF1224	1	2-200	0.1-23	960	2*1.5	6-8
2DZSF1224	2	2-200	0.1-23	960	2*1.5	6-8
3DZSF1530	3	2-200	0.1-32	960	2*2.2	6-8
3DZSF1540	3	2-200	0.1-35	960	2*2.2	6-8
3DZSF1840	3	2-200	0.1-40	960	2*3	6-8
5DZSF2050	5	2-200	0.1-48	960	2*3.7	6-8
