Usage and application:

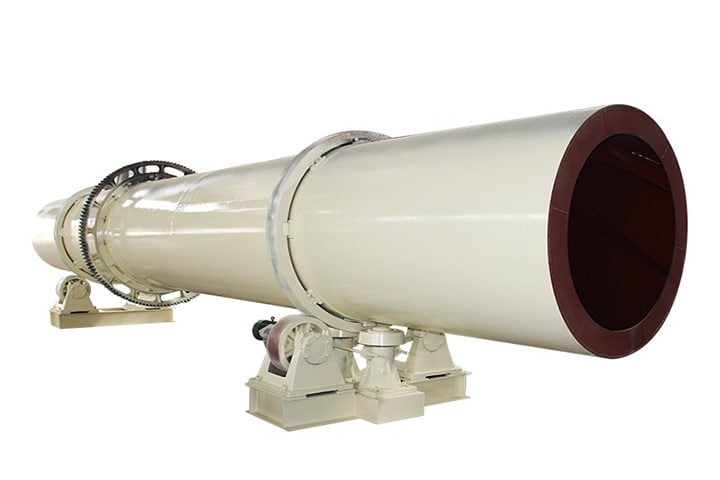

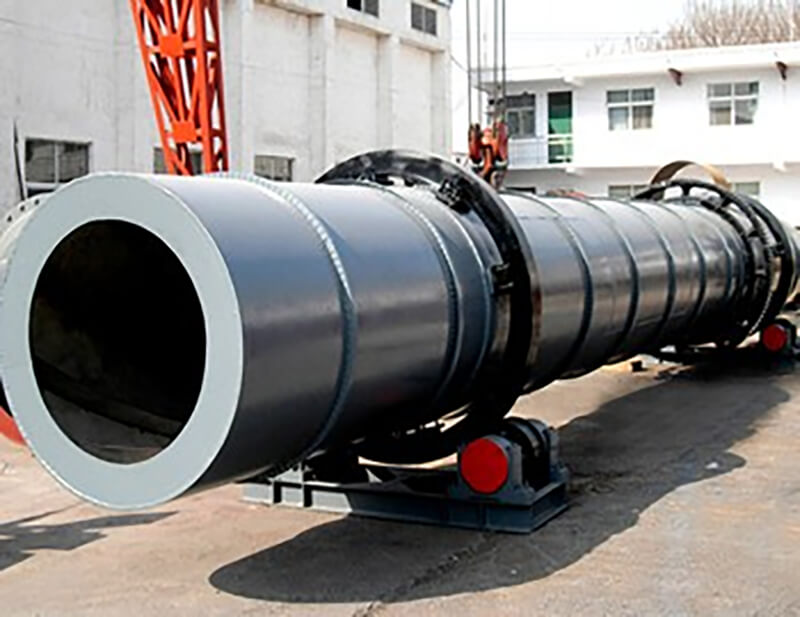

The bentonite dryer is a professional drying equipment for drying bentonite, kaolin, clay, etc. According to the specific characteristics of bentonite,we design the bentonite dryer.
Working principle：
Bentonite clay rotary dryer adopts direct flow type of heating with heat soure from firing unit.The material to be dried is pushed back immediately by spiral board when enters the shell from feeding tank and feeding chute.Because the drier is installed in slope, material flows to the back end under gravity and rotation force, meanwhile,it is lifted by board repeatedly and thrown down accordingly, which make the material form even curtain, and exchange heat sufficiently with inner the heat flow. In the end, water in the material is dried by repeatedly scattering.
Features:
1. The internal adopts assembled structure which has improved the accuracy of the equipment and it is easy to transport and install.
2. According to the characteristics of different fertilizers ,we have arranged the second granulation zone reasonably so as to improve the granulation effect .
3. Adopts assembled hoist board so as to exchange heat fully and lower the energy consumption .
4. Temperature induction monitor ,uniform vibration and airproof setting , which improve performance and productivity efficiently .
5. The assorted combustion furnace is a type of energy efficient and has the characteristics of smaller area , easy regulation and equipped with greenhouse
