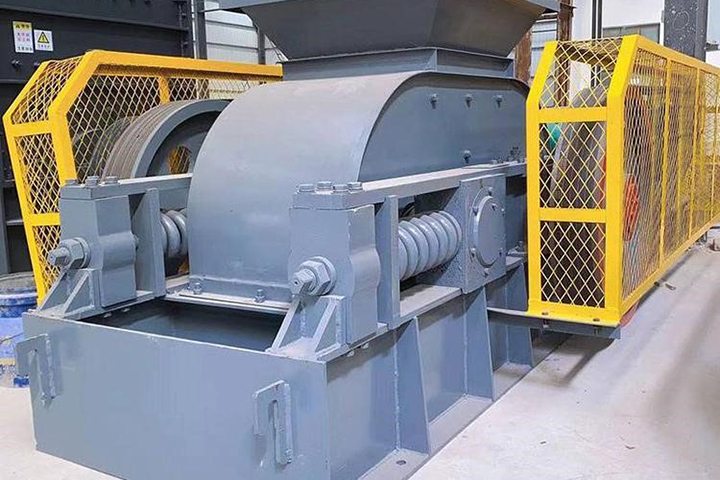

Double teeth roller crusher

Double teeth roller crusher

Double roller Teeth Crusher is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on.

CONTACT US

Product information

Usage and application:

Double roller Teeth Crusher is widely used for secondary and fine crushing in the industry of mining, building materials, chemical industry, metallurgy and so on. It can crush materials in middle hardness such as rocks, ore, coke, lump coal, slag, mineral slag, cement clinker, fireproof materials, etc.

Working principle of double teeth roller crusher

The materials to be crushed fall from the feeding hopper to the space between the two rolls, after being squeezed and crushed, the final products will be discharged by gravity. There are springs behind each roller, in case hard materials are fed, they can protect the rollers from damage.


Features:

1.  Compact structure, reliable performance

2. Low noise and high efficiency

3. Easy to install and only need simple foundation

4. It can adjust the pressure and size easily, and can be made to meet the customer's request

5. Low attrition rate and easy to maintain


× Enlarged Image

Technical specifications

Model

Max. Feeding size(mm)

Discharge size(mm)

Capacity(t/h)

Motor power(kw)

Weighy(t)

2PGC450*500

 300

15-75

 20-45

7.5*2

4.2

2PGC600*750

400

15-125

 30-180

18.5*2

7.8

2PGC600*900

 40-100

18.5*2

 8.4

2PGC600*1200

 50-120

22*2

11.2

2PGC800*1000

20-150

 80-180

22*2

12.6

2PGC800*1200

100-220

30*2

15.2

2PGC900*900

 500

30-150

80-180

30*2

14.5
