Usage and application:

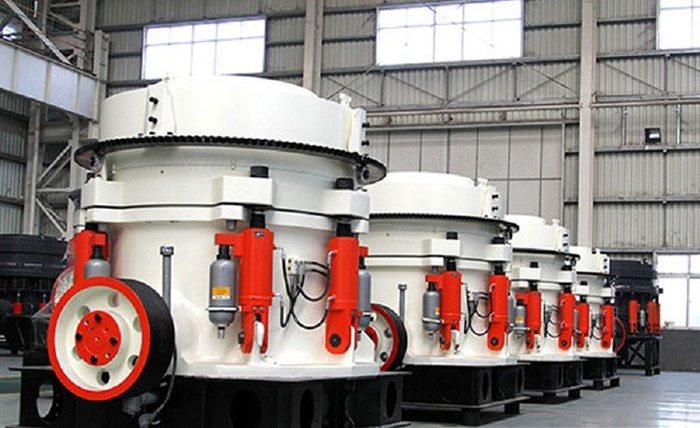

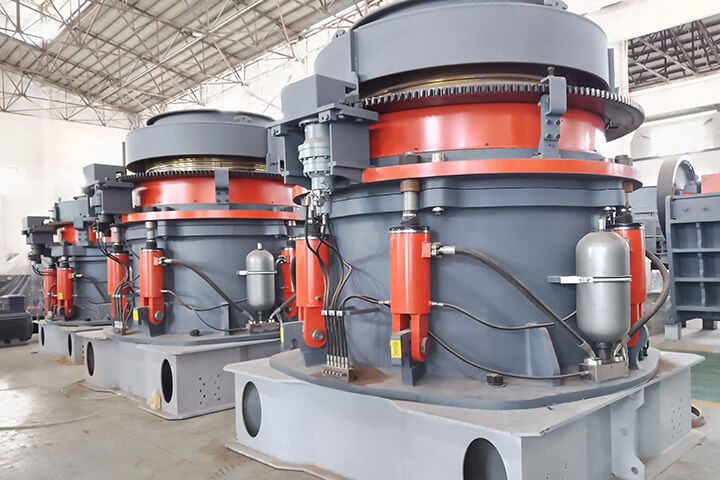

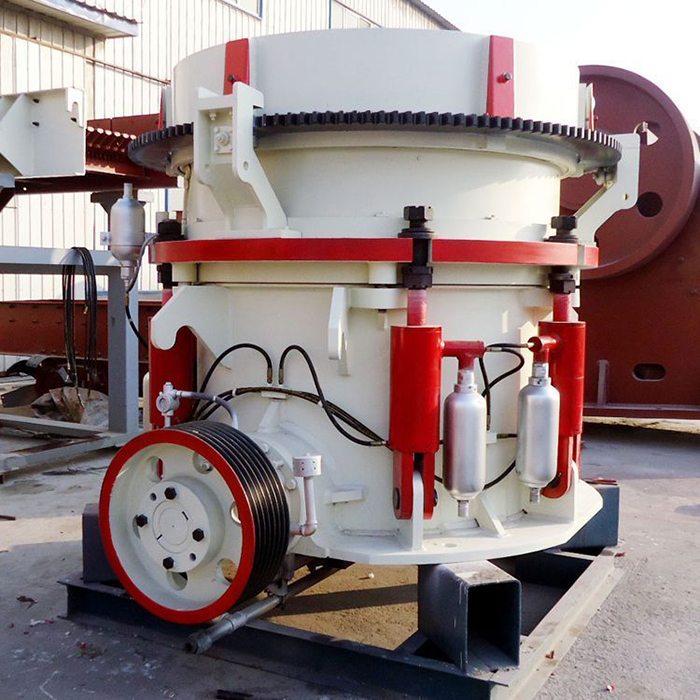

Multi-cylinder hydraulic cone crusher is applied to mining, building construction, road & bridge construction, railway construction and metallurgy and some other industries. Materials like iron ore, granite, limestone, quartzite, sandstone, cobblestone and some others are easily crushed by cone crusher.
Working principle:

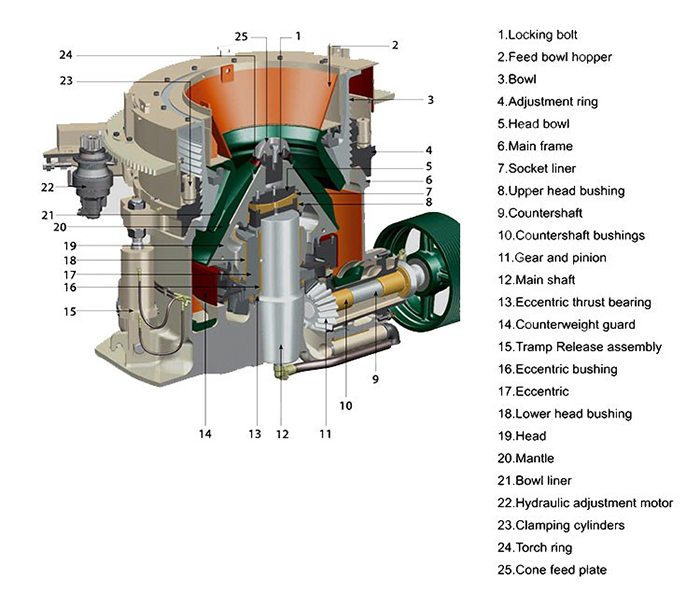

Multi-cylinder hydraulic one crusher is a compression type of stone crusher. The feeding rock is crushed by squeezing or compressing the feed material between a wear resistant mantle and a manganese concave or a bowl liner. The whole working process of HPC multi-cylinder hydraulic cone crusher is that motor drives the rotation of transmission shaft by belt pulley and v-belts, then transmission shaft drives the rotation of eccentric sleeve around the main shaft through the spiral bevel gear, squeezing or compressing the materials continuously. The material is crushed from all directions, crushed and grinded according to their own grain, which formed the high compressive strength building aggregates. The materials are small enough to fall through the narrow opening at the bottom of the crusher. Final sizing and reduction is determined by the closed side setting or the gap between the two crushing members at the lowest point
Features:
1. Full hydraulic protection and adjustment device, which is labor and time savings.
2. Application of materials-beds pressure crushing way, high utilization rate, flawless particle, uniform size.
3. Newest PLC automatic controlling system; provide reliable and safe protection.
4. Equipped with remote touch-screen operation interface and Display live working status.
